一、概述
1.安装说明
1
2
3
4
5
https://kubeedge.io/zh/
https://github.com/kubeedge/kubeedge
https://github.com/kubeedge/kubeedge/releases/tag/v1.13.4
2.安装keadm
cloudcore、edgecore同样操作
1
2
3
4
5
6
7
8
wget https://github.com/kubeedge/kubeedge/releases/download/v1.13.4/keadm-v1.13.4-linux-amd64.tar.gz
tar -zxvf keadm-v1.13.4-linux-amd64.tar.gz
mv keadm-v1.13.4-linux-amd64/keadm/keadm /usr/local/bin/
keadm version
keadm
3.安装cloudcore
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
keadm init --advertise-address=192.168.202.201 --set iptablesManager.mode="external" --profile version=v1.13.4
kubectl get ns
kubectl get pods -n kubeedge
kubectl get svc -n kubeedge
# 修改SVC
[root@k8s-master01 ~]# kubectl edit svc cloudcore -n kubeedge
service/cloudcore edited
# 修改位置：
selector:
k8s-app: kubeedge
kubeedge: cloudcore
sessionAffinity: None
type: LoadBalancer 此处由clusterIP修改为NodePort
4.安装edgecore
1
2
3
1.安装keadm
2.安装docker
3.加入Edge节点
1
2
3
4
5
6
7
8
9
TOKEN=bec7e346f2b62b87bb01cb8082111b05759aa16ba298d7b97442581c3bccee52.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE2NzMzMjI1Mjd9. BzQiyUFBp1dax9NC7BOssRe4PgjwOE24w2jE7S8Hp-0
SERVER=192.168.202.201:10000
keadm join --token=$TOKEN --cloudcore-ipport=$SERVER --kubeedge-version=v1.13.4 --runtimetype=docker --edgenode-name=edge-1
kubectl get nodes
systemctl status edgecore
5.启用 kubectl logs 功能
5.1.官方文档
1
https://release-1-13.docs.kubeedge.io/docs/setup/install-with-keadm/
5.2.设置iptables
1.获取tunnelport
1
2
3
4
5
6
7
8
9
10
11
12
# 获取 configmap
[root@k8s-master kubeedge]# kubectl get cm tunnelport -nkubeedge -oyaml
apiVersion: v1
kind: ConfigMap
metadata:
annotations:
tunnelportrecord.kubeedge.io: '{"ipTunnelPort":{"192.168.202.202":10351},"port":{"10351":true}}'
creationTimestamp: "2023-12-17T09:00:02Z"
name: tunnelport
namespace: kubeedge
resourceVersion: "4756"
uid: 80afe5e2-94e0-4d72-b0e6-32aab67535e8
2.设置iptables
1
2
3
4
5
6
# 清除 iptables
[root@k8s-master kubeedge]# iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
# 设置iptables
[root@k8s-master kubeedge]# iptables -t nat -A OUTPUT -p tcp --dport 10351 -j DNAT --to 192.168.202.202:10003
5.3.修改edgecore配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

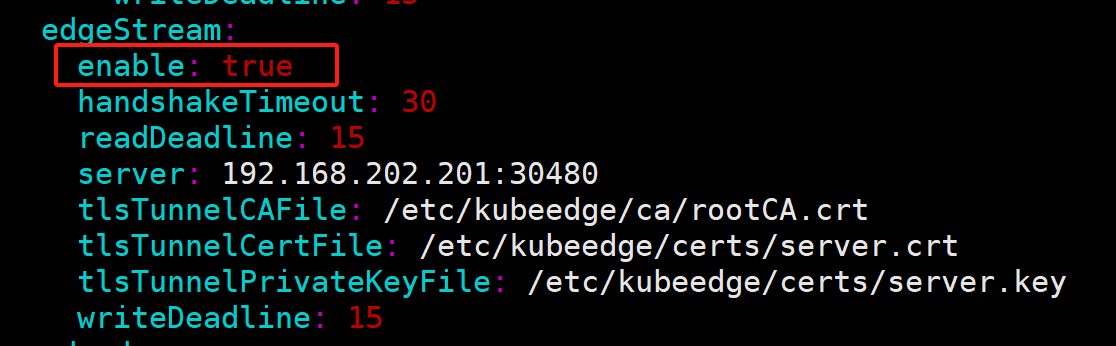

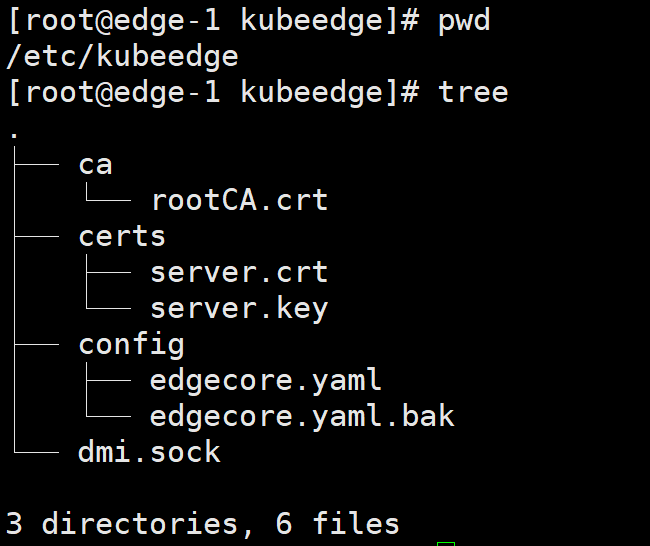

[root@edge-1 kubeedge]# vim /etc/kubeedge/config/edgecore.yaml
edgeStream:
enable: true
handshakeTimeout: 30
readDeadline: 15
server: 192.168.202.201:30480
tlsTunnelCAFile: /etc/kubeedge/ca/rootCA.crt
tlsTunnelCertFile: /etc/kubeedge/certs/server.crt
tlsTunnelPrivateKeyFile: /etc/kubeedge/certs/server.key
writeDeadline: 15

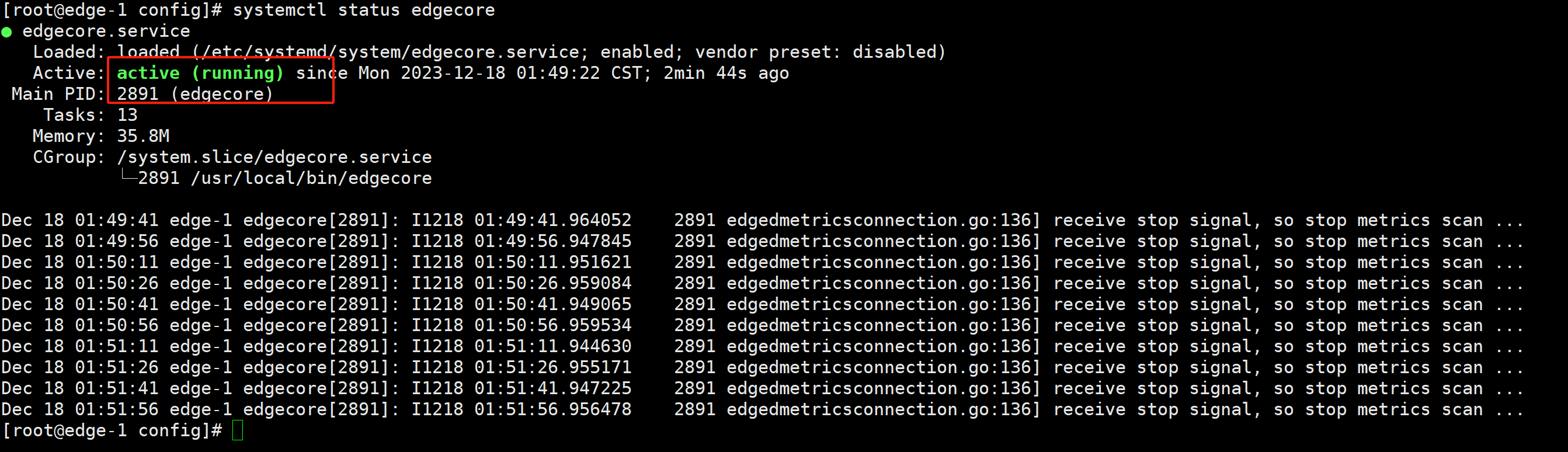

# systemctl restart edgecore
# systemctl status edgecore
1
2
3
4
# 查看日志
# kubectl logs nginx-deployment-6fb75cb954-2cw59
# kubectl exec -it nginx-deployment-6fb75cb954-2cw59 -- /bin/bash
二、cloudcore安装部署
1.安装K8S集群
安装准备：
- 安装k8s集群
- 安装metrics-server
软件版本：
- Kubernetes：v1.23.12
- KubeEdge：v1.13.4
2.安装keadm
master节点安装keadm
1
2
3
4
5
6
7
8
9
10
11
# 1.下载安装文件
wget https://github.com/kubeedge/kubeedge/releases/download/v1.13.4/keadm-v1.13.4-linux-amd64.tar.gz
# 2.解压
tar -zxvf keadm-v1.13.4-linux-amd64.tar.gz
# 3.移动文件
mv keadm-v1.13.4-linux-amd64/keadm/keadm /usr/local/bin/
keadm
keadm version
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# 解压
[root@k8s-master kubeedge]# tar -xf keadm-v1.13.4-linux-amd64.tar.gz
# 移动文件
[root@k8s-master kubeedge]# mv keadm-v1.13.4-linux-amd64/keadm/keadm /usr/local/bin/
[root@k8s-master kubeedge]# keadm version
version: version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.4", GitCommit:"043bd224ff34c44c10990e1ecbe50dd33f80b52b", GitTreeState:"clean", BuildDate:"2023-11-30T12:53:38Z", GoVersion:"go1.17.13", Compiler:"gc", Platform:"linux/amd64"}
[root@k8s-master kubeedge]# keadm
+----------------------------------------------------------+
| KEADM |
| Easily bootstrap a KubeEdge cluster |
| |
| Please give us feedback at: |
| https://github.com/kubeedge/kubeedge/issues |
+----------------------------------------------------------+
Create a cluster with cloud node
(which controls the edge node cluster), and edge nodes
(where native containerized application, in the form of
pods and deployments run), connects to devices.
......
3.安装cloudcore
1
2
3
4
5
keadm init --advertise-address=192.168.202.201 --set iptablesManager.mode="external" --profile version=v1.13.4
kubectl get ns
kubectl get pods -n kubeedge
kubectl get svc -n kubeedge
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
#192.168.202.201为 master 的IP
[root@k8s-master kubeedge]# keadm init --advertise-address=192.168.202.201 --set iptablesManager.mode="external" --profile version=v1.13.4
Kubernetes version verification passed, KubeEdge installation will start...
CLOUDCORE started
=========CHART DETAILS=======
NAME: cloudcore
LAST DEPLOYED: Sun Jan 7 12:34:45 2024
NAMESPACE: kubeedge
STATUS: deployed
REVISION: 1
[root@k8s-master kubeedge]# kubectl get ns
NAME STATUS AGE
default Active 2d2h
kube-node-lease Active 2d2h
kube-public Active 2d2h
kube-system Active 2d2h
kubeedge Active 2m39s

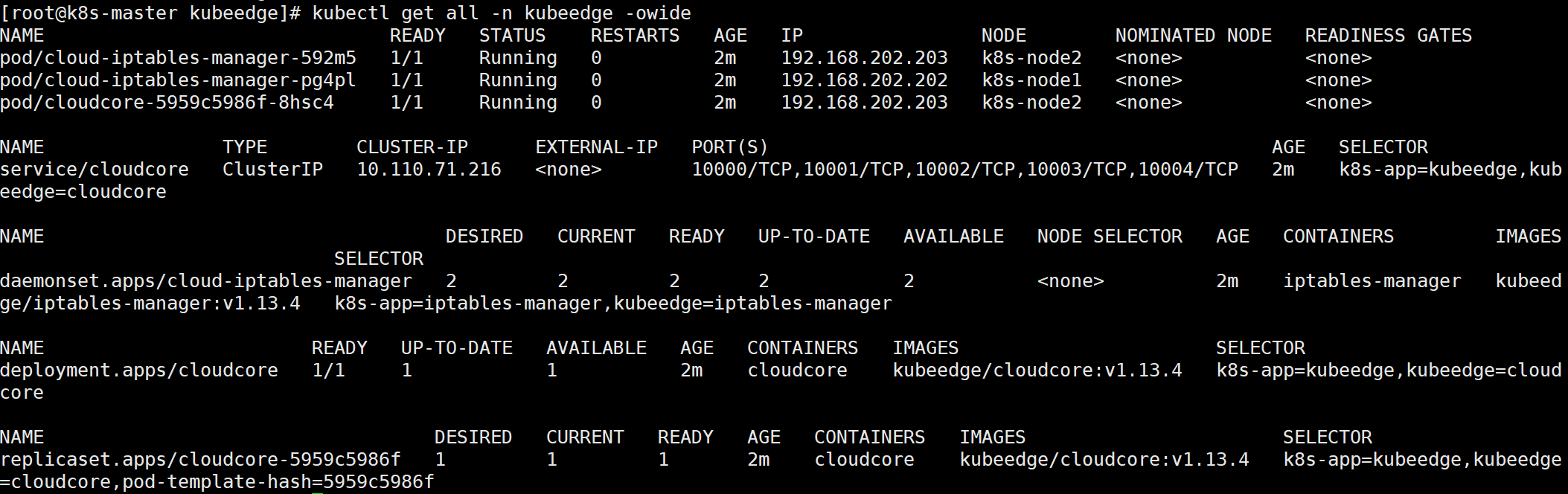

[root@k8s-master kubeedge]# kubectl get all -n kubeedge
NAME READY STATUS RESTARTS AGE
pod/cloud-iptables-manager-592m5 1/1 Running 0 66s
pod/cloud-iptables-manager-pg4pl 1/1 Running 0 66s
pod/cloudcore-5959c5986f-8hsc4 1/1 Running 0 66s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cloudcore ClusterIP 10.110.71.216 <none> 10000/TCP,10001/TCP,10002/TCP,10003/TCP,10004/TCP 66s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/cloud-iptables-manager 2 2 2 2 2 <none> 66s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/cloudcore 1/1 1 1 66s
NAME DESIRED CURRENT READY AGE
replicaset.apps/cloudcore-5959c5986f 1 1 1 66s
#生成的token
[root@k8s-master kubeedge]# keadm gettoken
f06b43005c8eb23508c4c95a756606f7ed4db588b8fd3461b078947a5f57a487.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MDQ2ODg0OTN9.vSJ-YXHevJ8QX3qb_8vTzjpI1HCk2Wkai0tUmFkJQSY
4.修改SVC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 修改cloudcore的svc类型为NodePort
[root@k8s-master kubeedge]# kubectl edit svc cloudcore -n kubeedge
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
kind: Service
.....
sessionAffinity: None
type: NodePort
status:
loadBalancer: {}

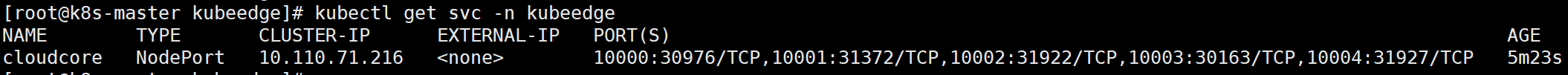

[root@k8s-master kubeedge]# kubectl get svc -n kubeedge
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cloudcore NodePort 10.110.71.216 <none> 10000:30976/TCP,10001:31372/TCP,10002:31922/TCP,10003:30163/TCP,10004:31927/TCP 5m23s
5.打标签
1
2
3
4
5
6
7
# 因为边缘计算的硬件条件都不好，这里我们需要打上标签，让一些应用不扩展到edge节点上去
kubectl get daemonset -n kube-system |grep -v NAME |awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n kube-system --type='json' -p='[{"op": "replace","path": "/spec/template/spec/affinity","value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]'
# 暂时不用
kubectl get daemonset -n metallb-system |grep -v NAME |awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n metallb-system --type='json' -p='[{"op": "replace","path": "/spec/template/spec/affinity","value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]'
1
2
3
[root@k8s-master kubeedge]# kubectl get daemonset -n kube-system |grep -v NAME |awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n kube-system --type='json' -p='[{"op": "replace","path": "/spec/template/spec/affinity","value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]'
daemonset.apps/calico-node patched
daemonset.apps/kube-proxy patched
6.查看端口
1
2
3
4
5

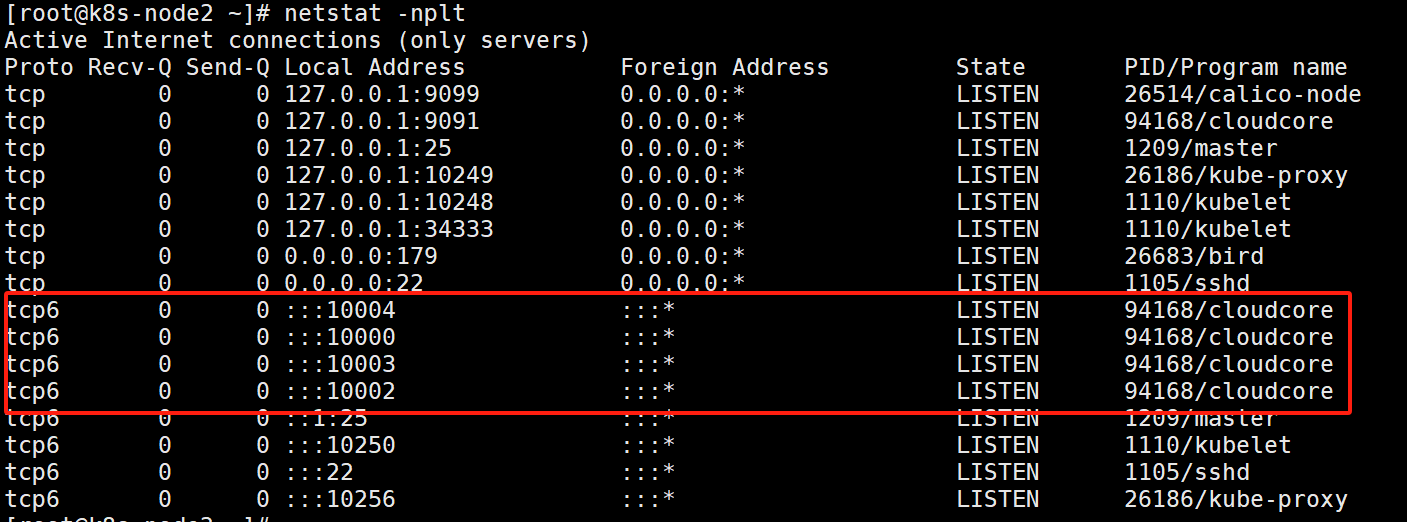

# 查看cloudcore端口
netstat -nplt
[root@k8s-node2 ~]# netstat -nplt
三、edgecore安装部署
1. 安装准备
1
2
3
4
5
6
7
8
9
10
11
#克隆机器
cd /etc/sysconfig/network-scripts
vim ifcfg-ens33
#关闭防火墙
systemctl stop firewalld
systemctl disable firewalld
hostnamectl set-hostname edge-1
2.安装keadm
1
2
3
4
5
6
7
8
9
10
# 解压
[root@edge-1 kubeedge]# tar -xf keadm-v1.13.4-linux-amd64.tar.gz
# 移动文件
[root@edge-1 kubeedge]# mv keadm-v1.13.4-linux-amd64/keadm/keadm /usr/local/bin/
[root@edge-1 kubeedge]# keadm version
version: version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.4", GitCommit:"043bd224ff34c44c10990e1ecbe50dd33f80b52b", GitTreeState:"clean", BuildDate:"2023-11-30T12:53:38Z", GoVersion:"go1.17.13", Compiler:"gc", Platform:"linux/amd64"}
3.安装Docker
安装版本19.03.*
1
2
3
4
5
6
7
$ wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
$ yum -y install docker-ce
$ systemctl enable docker && systemctl start docker
$ docker --version
- 添加阿里云加速镜像
1
2
3
4
5
6
7
8
# 添加阿里云加速镜像
cat > /etc/docker/daemon.json << EOF
{
"registry-mirrors": ["https://gcctk8ld.mirror.aliyuncs.com"],
"exec-opts": ["native.cgroupdriver=cgroupfs"]
}
EOF
- 重启docker
1
2
#重启docker
systemctl restart docker
4.加入Edge节点
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# 在master节点上获取token
[root@k8s-master kubeedge]# keadm gettoken
f06b43005c8eb23508c4c95a756606f7ed4db588b8fd3461b078947a5f57a487.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MDQ2ODg0OTN9.vSJ-YXHevJ8QX3qb_8vTzjpI1HCk2Wkai0tUmFkJQSY

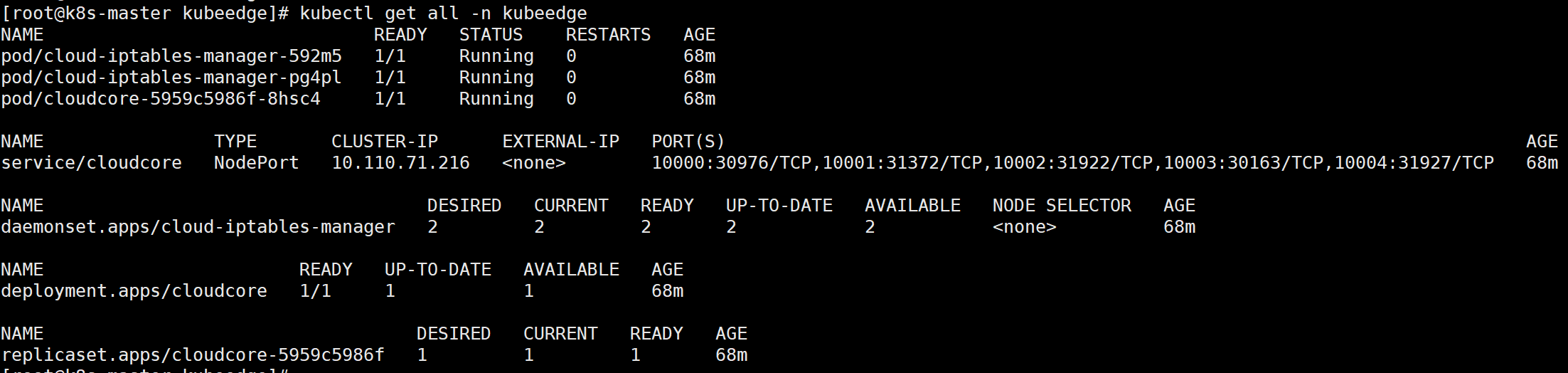

[root@k8s-master kubeedge]# kubectl get svc -n kubeedge
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cloudcore NodePort 10.110.71.216 <none> 10000:30976/TCP,10001:31372/TCP,10002:31922/TCP,10003:30163/TCP,10004:31927/TCP 22m
10000:30976
10001:31372
10002:31922
10003:30163
10004:31927
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
# 加入edge节点
[root@edge-1 kubeedge]# TOKEN=f06b43005c8eb23508c4c95a756606f7ed4db588b8fd3461b078947a5f57a487.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MDQ2ODg0OTN9.vSJ-YXHevJ8QX3qb_8vTzjpI1HCk2Wkai0tUmFkJQSY
[root@edge-1 kubeedge]# echo $TOKEN
58af829fff435f1363b8084b475f44c90d54f959af3f5837032c4ce6095939b3.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MDQ2ODA5NDJ9.0Xcx0Bxwdu44XSZ3YTSY1GTAJeEs74Dlk5pJGJmiVco
[root@edge-1 kubeedge]# SERVER=192.168.202.201:30976
[root@edge-1 kubeedge]# echo $SERVER
192.168.202.201:30976
# keadm join --token=$TOKEN --cloudcore-ipport=$SERVER --kubeedge-version=v1.13.4 --runtimetype=docker --edgenode-name=edge-1
[root@edge-1 kubeedge]# keadm join --token=$TOKEN --cloudcore-ipport=$SERVER --kubeedge-version=v1.13.4 --runtimetype=docker --edgenode-name=edge-1
I0107 21:00:16.935240 1919 command.go:845] 1. Check KubeEdge edgecore process status
I0107 21:00:16.951529 1919 command.go:845] 2. Check if the management directory is clean
I0107 21:00:16.951652 1919 join.go:107] 3. Create the necessary directories
I0107 21:00:16.953321 1919 join.go:184] 4. Pull Images
Pulling kubeedge/installation-package:v1.13.4 ...
Successfully pulled kubeedge/installation-package:v1.13.4
Pulling eclipse-mosquitto:1.6.15 ...
Successfully pulled eclipse-mosquitto:1.6.15
Pulling kubeedge/pause:3.6 ...
Successfully pulled kubeedge/pause:3.6
I0107 21:02:10.245112 1919 join.go:184] 5. Copy resources from the image to the management directory
I0107 21:02:10.730869 1919 join.go:184] 6. Start the default mqtt service
I0107 21:02:10.731301 1919 join.go:107] 7. Generate systemd service file
I0107 21:02:10.731783 1919 join.go:107] 8. Generate EdgeCore default configuration
I0107 21:02:10.731795 1919 join.go:270] The configuration does not exist or the parsing fails, and the default configuration is generated
W0107 21:02:11.978368 1919 validation.go:71] NodeIP is empty , use default ip which can connect to cloud.
I0107 21:02:11.980278 1919 join.go:107] 9. Run EdgeCore daemon
I0107 21:02:12.108286 1919 join.go:435]
I0107 21:02:12.108298 1919 join.go:436] KubeEdge edgecore is running, For logs visit: journalctl -u edgecore.service -xe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

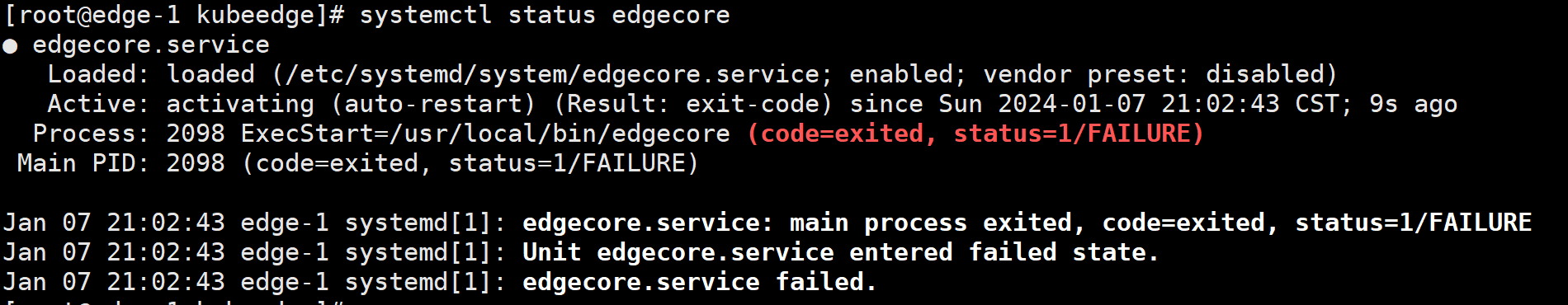

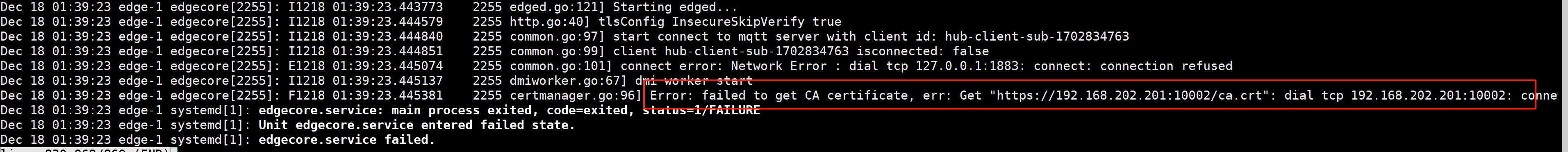

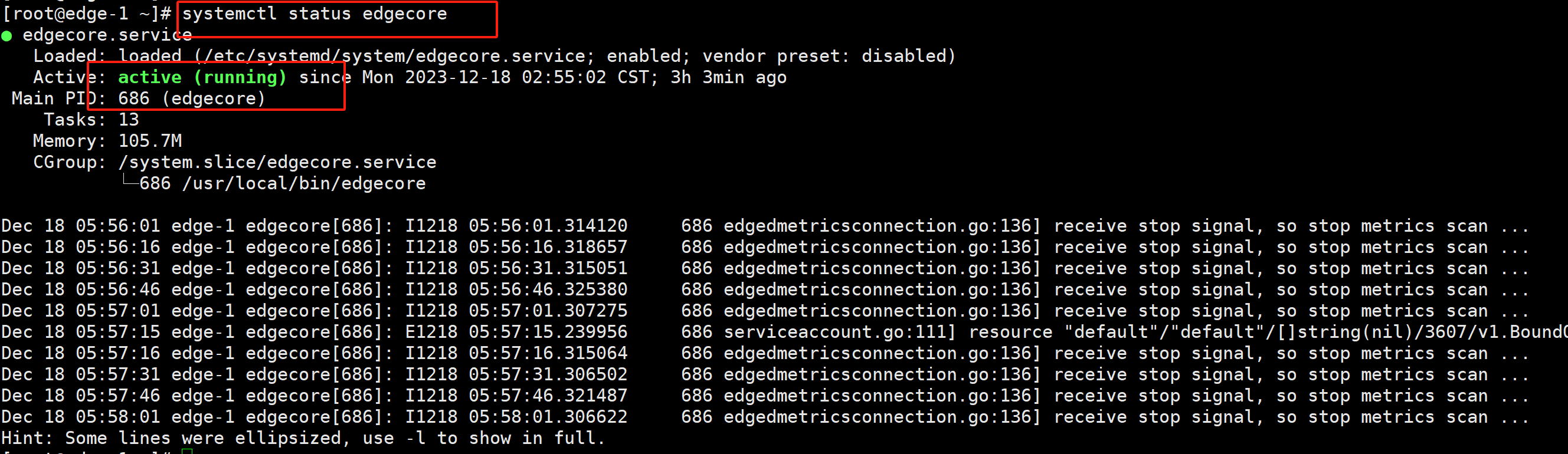

[root@edge-1 kubeedge]# systemctl status edgecore
● edgecore.service
Loaded: loaded (/etc/systemd/system/edgecore.service; enabled; vendor preset: disabled)
Active: activating (auto-restart) (Result: exit-code) since Sun 2024-01-07 21:02:43 CST; 9s ago
Process: 2098 ExecStart=/usr/local/bin/edgecore (code=exited, status=1/FAILURE)
Main PID: 2098 (code=exited, status=1/FAILURE)
Jan 07 21:02:43 edge-1 systemd[1]: edgecore.service: main process exited, code=exited, status=1/FAILURE
Jan 07 21:02:43 edge-1 systemd[1]: Unit edgecore.service entered failed state.
Jan 07 21:02:43 edge-1 systemd[1]: edgecore.service failed.

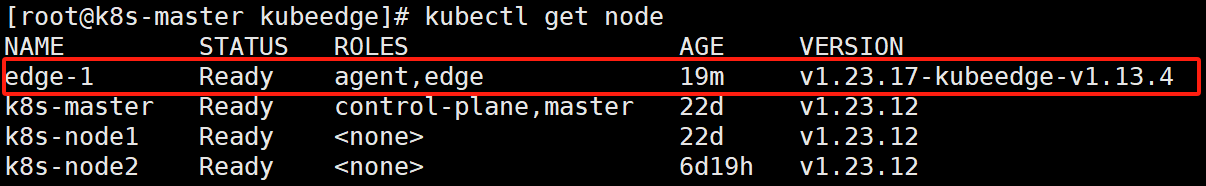

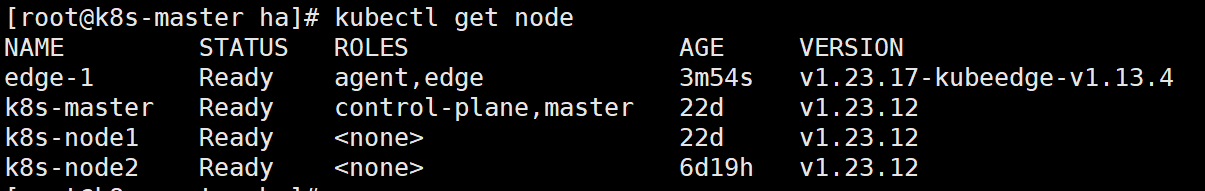

[root@k8s-master ha]# kubectl get node
NAME STATUS ROLES AGE VERSION
edge-1 Ready agent,edge 15m v1.23.17-kubeedge-v1.13.4
k8s-master Ready control-plane,master 16d v1.23.12
k8s-node1 Ready <none> 16d v1.23.12
k8s-node2 Ready <none> 19h v1.23.12
5.问题解决
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
# 查看服务状态
[root@edge-1 kubeedge]# systemctl status edgecore
● edgecore.service
Loaded: loaded (/etc/systemd/system/edgecore.service; enabled; vendor preset: disabled)
Active: activating (auto-restart) (Result: exit-code) since Mon 2023-12-18 01:38:11 CST; 4s ago
Process: 2184 ExecStart=/usr/local/bin/edgecore (code=exited, status=1/FAILURE)
Main PID: 2184 (code=exited, status=1/FAILURE)
Dec 18 01:38:11 edge-1 systemd[1]: edgecore.service: main process exited, code=exited, status=1/FAILURE
Dec 18 01:38:11 edge-1 systemd[1]: Unit edgecore.service entered failed state.
Dec 18 01:38:11 edge-1 systemd[1]: edgecore.service failed.
# 查看日志
[root@edge-1 kubeedge]# journalctl -u edgecore.service -xe
Dec 18 01:39:23 edge-1 systemd[1]: Stopped edgecore.service.
-- Subject: Unit edgecore.service has finished shutting down
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit edgecore.service has finished shutting down.
Dec 18 01:39:23 edge-1 systemd[1]: Started edgecore.service.
-- Subject: Unit edgecore.service has finished start-up
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit edgecore.service has finished starting up.
--
-- The start-up result is done.
Dec 18 01:39:23 edge-1 edgecore[2255]: W1218 01:39:23.403517 2255 validation.go:71] NodeIP is empty , use default ip which can connect to cloud.
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.403574 2255 server.go:102] Version: v1.13.4
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.404592 2255 sql.go:21] Begin to register twin db model
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.404677 2255 module.go:52] Module twin registered successfully
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.410874 2255 module.go:52] Module edged registered successfully
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.410888 2255 module.go:52] Module websocket registered successfully
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.410892 2255 module.go:52] Module eventbus registered successfully
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.410911 2255 metamanager.go:41] Begin to register metamanager db model
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.410930 2255 module.go:52] Module metamanager registered successfully
Dec 18 01:39:23 edge-1 edgecore[2255]: W1218 01:39:23.410936 2255 module.go:55] Module servicebus is disabled, do not register
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.442777 2255 edgestream.go:55] Get node local IP address successfully: 192.168.202.211
Dec 18 01:39:23 edge-1 edgecore[2255]: W1218 01:39:23.442801 2255 module.go:55] Module edgestream is disabled, do not register
Dec 18 01:39:23 edge-1 edgecore[2255]: W1218 01:39:23.442806 2255 module.go:55] Module testManager is disabled, do not register
Dec 18 01:39:23 edge-1 edgecore[2255]: table `device` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `device_attr` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `device_twin` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `sub_topics` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `meta` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `meta_v2` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: table `target_urls` already exists, skip
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443508 2255 core.go:46] starting module twin
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443535 2255 core.go:46] starting module edged
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443545 2255 core.go:46] starting module websocket
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443556 2255 core.go:46] starting module eventbus
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443563 2255 core.go:46] starting module metamanager
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443614 2255 process.go:119] Begin to sync sqlite
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.443773 2255 edged.go:121] Starting edged...
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.444579 2255 http.go:40] tlsConfig InsecureSkipVerify true
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.444840 2255 common.go:97] start connect to mqtt server with client id: hub-client-sub-1702834763
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.444851 2255 common.go:99] client hub-client-sub-1702834763 isconnected: false
Dec 18 01:39:23 edge-1 edgecore[2255]: E1218 01:39:23.445074 2255 common.go:101] connect error: Network Error : dial tcp 127.0.0.1:1883: connect: connection refused
Dec 18 01:39:23 edge-1 edgecore[2255]: I1218 01:39:23.445137 2255 dmiworker.go:67] dmi worker start
Dec 18 01:39:23 edge-1 edgecore[2255]: F1218 01:39:23.445381 2255 certmanager.go:96] Error: failed to get CA certificate, err: Get "https://192.168.202.201:10002/ca.crt": dial tcp 192.168.202.201:10002: conne
Dec 18 01:39:23 edge-1 systemd[1]: edgecore.service: main process exited, code=exited, status=1/FAILURE
Dec 18 01:39:23 edge-1 systemd[1]: Unit edgecore.service entered failed state.
Dec 18 01:39:23 edge-1 systemd[1]: edgecore.service failed.
1
2
3
4
5
# 问题分析
需要修改cloudcore的外部端口
# 修改配置端口
vim /etc/kubeedge/config/edgecore.yaml
6.修改配置文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# 修改配置文件
[root@edge-1 ~]# cd /etc/kubeedge/config/
[root@edge-1 config]# ll
total 8
-rw-r--r--. 1 root root 5106 Dec 12 20:33 edgecore.yaml
httpServer: https://192.168.202.201:10002
server: 192.168.202.201:10004
[root@k8s-master kubeedge]# kubectl get svc -n kubeedge
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cloudcore NodePort 10.110.71.216 <none> 10000:30976/TCP,10001:31372/TCP,10002:31922/TCP,10003:30163/TCP,10004:31927/TCP 22m
#重启服务
systemctl start edgecore
systemctl status edgecore
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@edge-1 config]# systemctl start edgecore
[root@edge-1 config]# systemctl status edgecore
● edgecore.service
Loaded: loaded (/etc/systemd/system/edgecore.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2023-12-18 01:49:22 CST; 2min 44s ago
Main PID: 2891 (edgecore)
Tasks: 13
Memory: 35.8M
CGroup: /system.slice/edgecore.service
└─2891 /usr/local/bin/edgecore
Dec 18 01:49:41 edge-1 edgecore[2891]: I1218 01:49:41.964052 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:49:56 edge-1 edgecore[2891]: I1218 01:49:56.947845 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:50:11 edge-1 edgecore[2891]: I1218 01:50:11.951621 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:50:26 edge-1 edgecore[2891]: I1218 01:50:26.959084 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:50:41 edge-1 edgecore[2891]: I1218 01:50:41.949065 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:50:56 edge-1 edgecore[2891]: I1218 01:50:56.959534 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:51:11 edge-1 edgecore[2891]: I1218 01:51:11.944630 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:51:26 edge-1 edgecore[2891]: I1218 01:51:26.955171 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:51:41 edge-1 edgecore[2891]: I1218 01:51:41.947225 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 01:51:56 edge-1 edgecore[2891]: I1218 01:51:56.956478 2891 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
7.安装检查
1
2
3
4
5
6
[root@k8s-master ha]# kubectl get node
NAME STATUS ROLES AGE VERSION
edge-1 Ready agent,edge 3m54s v1.23.17-kubeedge-v1.13.4
k8s-master Ready control-plane,master 22d v1.23.12
k8s-node1 Ready <none> 22d v1.23.12
k8s-node2 Ready <none> 6d19h v1.23.12
1
2
3
4
5
6
7
8
9
10
11
[root@edge-1 kubeedge]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
08daf58a6cb9 3a05ba674344 "/docker-entrypoint.…" 6 minutes ago Up 6 minutes k8s_mqtt_mqtt-kubeedge_default_fb2da009-0caf-48f8-92db-680a25c8cd59_0
43e207dcd886 kubeedge/pause:3.6 "/pause" 6 minutes ago Up 6 minutes 0.0.0.0:1883->1883/tcp, :::1883->1883/tcp, 0.0.0.0:9001->9001/tcp, :::9001->9001/tcp k8s_POD_mqtt-kubeedge_default_fb2da009-0caf-48f8-92db-680a25c8cd59_0
[root@edge-1 kubeedge]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
kubeedge/installation-package v1.13.4 2603294e1722 2 weeks ago 218MB
eclipse-mosquitto 1.6.15 3a05ba674344 2 years ago 11.6MB
kubeedge/pause 3.6 6270bb605e12 2 years ago 683kB
四、常规操作
1.cloudcore
1.1.基本操作
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@k8s-master kubeedge]# kubectl get all -n kubeedge
NAME READY STATUS RESTARTS AGE
pod/cloud-iptables-manager-592m5 1/1 Running 0 68m
pod/cloud-iptables-manager-pg4pl 1/1 Running 0 68m
pod/cloudcore-5959c5986f-8hsc4 1/1 Running 0 68m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cloudcore NodePort 10.110.71.216 <none> 10000:30976/TCP,10001:31372/TCP,10002:31922/TCP,10003:30163/TCP,10004:31927/TCP 68m
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/cloud-iptables-manager 2 2 2 2 2 <none> 68m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/cloudcore 1/1 1 1 68m
NAME DESIRED CURRENT READY AGE
replicaset.apps/cloudcore-5959c5986f 1 1 1 68m
[root@k8s-master kubeedge]# kubectl get node
NAME STATUS ROLES AGE VERSION
edge-1 Ready agent,edge 19m v1.23.17-kubeedge-v1.13.4
k8s-master Ready control-plane,master 22d v1.23.12
k8s-node1 Ready <none> 22d v1.23.12
k8s-node2 Ready <none> 6d19h v1.23.12
1.2.部署Nginx
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[root@k8s-master kubeedge]# vim nginx-nodename.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-nodename
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
nodeName: edge-1 #调度到指定机器
hostNetwork: true # 使用主机网络
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80
1
2
3
4
5
6
7
[root@k8s-master kubeedge]# kubectl apply -f nginx-nodename.yaml
deployment.apps/nginx-nodename created
[root@k8s-master kubeedge]# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-nodename-846f55748c-x8xqx 1/1 Running 0 63s 192.168.202.211 edge-1 <none> <none>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
[root@k8s-master kubeedge]# curl 192.168.202.211
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
1.3.查看日志
1
2
# 获取IP 192.168.202.203
# kubectl get cm tunnelport -nkubeedge -oyaml
1
2
3
4
5
6
7
8
9
# 系统重新启动，需要重新设置iptables
iptables -t nat -A OUTPUT -p tcp --dport $YOUR-TUNNEL-PORT -j DNAT --to $YOUR-CLOUDCORE-IP:10003
# 清除 iptables
[root@k8s-master kubeedge]# iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
# 设置iptables
[root@k8s-master kubeedge]# iptables -t nat -A OUTPUT -p tcp --dport 10351 -j DNAT --to 192.168.202.203:10003
1
2
# kubectl logs nginx-nodename-6fb75cb954-xgtf4
# kubectl exec -it nginx-nodename-6fb75cb954-xgtf4 -- /bin/bash
1
2
3
4
5
# kubectl logs nginx-deployment-6fb75cb954-2cw59
# kubectl exec -it nginx-deployment-6fb75cb954-2cw59 -- /bin/bash
# kubectl exec -it -n test nginx-deployment-6748d54874-62jmm -- /bin/bash
# kubectl exec -it nginx-deployment-5585cb6658-z2qdb bash
# kubectl exec -it nginx-deployment-5585cb6658-z2qdb /bin/bash
1.4.配置信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
kubectl edit configmap cloudcore -n kubeedge
[root@k8s-master kubeedge]# kubectl edit configmap cloudcore -n kubeedge
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
data:
cloudcore.yaml: |
apiVersion: cloudcore.config.kubeedge.io/v1alpha2
commonConfig:
monitorServer:
bindAddress: 127.0.0.1:9091
tunnelPort: 10351
kind: CloudCore
kubeAPIConfig:
burst: 10000
contentType: application/vnd.kubernetes.protobuf
kubeConfig: ""
master: ""
qps: 5000
modules:
cloudHub:
advertiseAddress:
- 192.168.202.201
dnsNames:
- ""
edgeCertSigningDuration: 365
enable: true
https:
address: 0.0.0.0
enable: true
port: 10002
keepaliveInterval: 30
nodeLimit: 1000
quic:
address: 0.0.0.0
enable: false
maxIncomingStreams: 10000
port: 10001
tlsCAFile: /etc/kubeedge/ca/rootCA.crt
tlsCAKeyFile: /etc/kubeedge/ca/rootCA.key
tlsCertFile: /etc/kubeedge/certs/edge.crt
tlsPrivateKeyFile: /etc/kubeedge/certs/edge.key
tokenRefreshDuration: 12
unixsocket:
address: unix:///var/lib/kubeedge/kubeedge.sock
enable: true
websocket:
address: 0.0.0.0
enable: true
port: 10000
writeTimeout: 30
cloudStream:
enable: true
streamPort: 10003
tlsStreamCAFile: /etc/kubeedge/ca/streamCA.crt
tlsStreamCertFile: /etc/kubeedge/certs/stream.crt
tlsStreamPrivateKeyFile: /etc/kubeedge/certs/stream.key
tlsTunnelCAFile: /etc/kubeedge/ca/rootCA.crt
tlsTunnelCertFile: /etc/kubeedge/certs/server.crt
tlsTunnelPrivateKeyFile: /etc/kubeedge/certs/server.key
tunnelPort: 10004
......
2.edgecore
2.1.edgecore服务
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
systemctl status edgecore
systemctl restart edgecore
[root@edge-1 ~]# systemctl status edgecore
● edgecore.service
Loaded: loaded (/etc/systemd/system/edgecore.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2023-12-18 02:55:02 CST; 3h 3min ago
Main PID: 686 (edgecore)
Tasks: 13
Memory: 105.7M
CGroup: /system.slice/edgecore.service
└─686 /usr/local/bin/edgecore
Dec 18 05:56:01 edge-1 edgecore[686]: I1218 05:56:01.314120 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:56:16 edge-1 edgecore[686]: I1218 05:56:16.318657 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:56:31 edge-1 edgecore[686]: I1218 05:56:31.315051 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:56:46 edge-1 edgecore[686]: I1218 05:56:46.325380 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:57:01 edge-1 edgecore[686]: I1218 05:57:01.307275 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:57:15 edge-1 edgecore[686]: E1218 05:57:15.239956 686 serviceaccount.go:111] resource "default"/"default"/[]string(nil)/3607/v1.BoundObjectReference{Kind:"Pod", APIVersion:"v1", N...} token expired
Dec 18 05:57:16 edge-1 edgecore[686]: I1218 05:57:16.315064 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:57:31 edge-1 edgecore[686]: I1218 05:57:31.306502 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:57:46 edge-1 edgecore[686]: I1218 05:57:46.321487 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:58:01 edge-1 edgecore[686]: I1218 05:58:01.306622 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Hint: Some lines were ellipsized, use -l to show in full.
2.2.edgecore日志
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

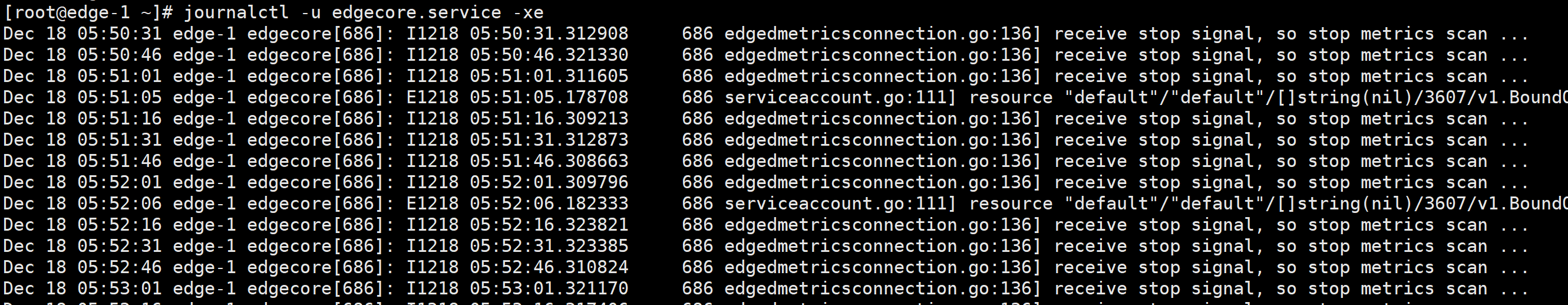

journalctl -u edgecore.service -xe
[root@edge-1 ~]# journalctl -u edgecore.service -xe
Dec 18 05:50:31 edge-1 edgecore[686]: I1218 05:50:31.312908 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:50:46 edge-1 edgecore[686]: I1218 05:50:46.321330 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:51:01 edge-1 edgecore[686]: I1218 05:51:01.311605 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:51:05 edge-1 edgecore[686]: E1218 05:51:05.178708 686 serviceaccount.go:111] resource "default"/"default"/[]string(nil)/3607/v1.BoundObjectReference{Kind:"Pod", APIVersion:"v1", Name:"nginx-deploym
Dec 18 05:51:16 edge-1 edgecore[686]: I1218 05:51:16.309213 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:51:31 edge-1 edgecore[686]: I1218 05:51:31.312873 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:51:46 edge-1 edgecore[686]: I1218 05:51:46.308663 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:52:01 edge-1 edgecore[686]: I1218 05:52:01.309796 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:52:06 edge-1 edgecore[686]: E1218 05:52:06.182333 686 serviceaccount.go:111] resource "default"/"default"/[]string(nil)/3607/v1.BoundObjectReference{Kind:"Pod", APIVersion:"v1", Name:"nginx-deploym
Dec 18 05:52:16 edge-1 edgecore[686]: I1218 05:52:16.323821 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:52:31 edge-1 edgecore[686]: I1218 05:52:31.323385 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:52:46 edge-1 edgecore[686]: I1218 05:52:46.310824 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:53:01 edge-1 edgecore[686]: I1218 05:53:01.321170 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
Dec 18 05:53:16 edge-1 edgecore[686]: I1218 05:53:16.317406 686 edgedmetricsconnection.go:136] receive stop signal, so stop metrics scan ...
2.3.配置文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
# vim /etc/kubeedge/config/edgecore.yaml
[root@edge-1 ~]# vim /etc/kubeedge/config/edgecore.yaml
apiVersion: edgecore.config.kubeedge.io/v1alpha2
database:
aliasName: default
dataSource: /var/lib/kubeedge/edgecore.db
driverName: sqlite3
kind: EdgeCore
modules:
dbTest:
enable: false
deviceTwin:
enable: true
edgeHub:
enable: true
heartbeat: 15
httpServer: https://192.168.202.201:32688
messageBurst: 60
messageQPS: 30
projectID: e632aba927ea4ac2b575ec1603d56f10
quic:
enable: false
handshakeTimeout: 30
readDeadline: 15
server: 192.168.202.211:10001
writeDeadline: 15
rotateCertificates: true
tlsCaFile: /etc/kubeedge/ca/rootCA.crt
tlsCertFile: /etc/kubeedge/certs/server.crt
tlsPrivateKeyFile: /etc/kubeedge/certs/server.key
token: ""
websocket:
enable: true
handshakeTimeout: 30
readDeadline: 15
server: 192.168.202.201:31487
writeDeadline: 15
edgeStream:
enable: true
handshakeTimeout: 30
readDeadline: 15
server: 192.168.202.201:30480
tlsTunnelCAFile: /etc/kubeedge/ca/rootCA.crt
tlsTunnelCertFile: /etc/kubeedge/certs/server.crt
tlsTunnelPrivateKeyFile: /etc/kubeedge/certs/server.key
writeDeadline: 15
edged:
cniBinDir: /opt/cni/bin
cniCacheDir: /var/lib/cni/cache
cniConfDir: /etc/cni/net.d
containerRuntime: docker
enable: true
hostnameOverride: edge-1
......
1
2
3
4
5
6
7
8
9
10
11
12
13
[root@edge-1 kubeedge]# pwd
/etc/kubeedge
[root@edge-1 kubeedge]# tree
.
├── ca
│?? └── rootCA.crt
├── certs
│?? ├── server.crt
│?? └── server.key
├── config
│?? ├── edgecore.yaml
│?? └── edgecore.yaml.bak
└── dmi.sock
