MQTT客户端（JAVA）

一、概述

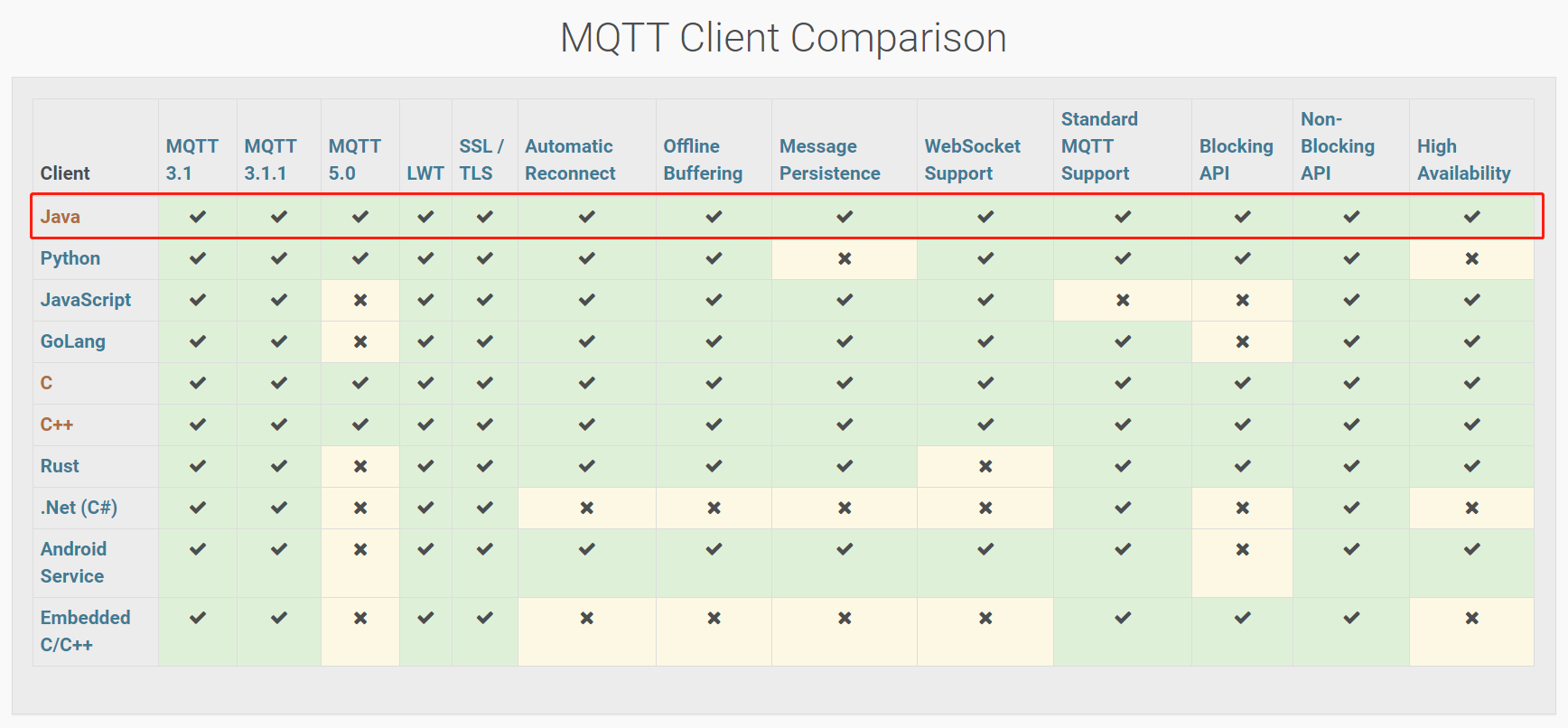

1.Eclipse Paho

1.1.Eclipse Paho Java Client

1
2
3
4

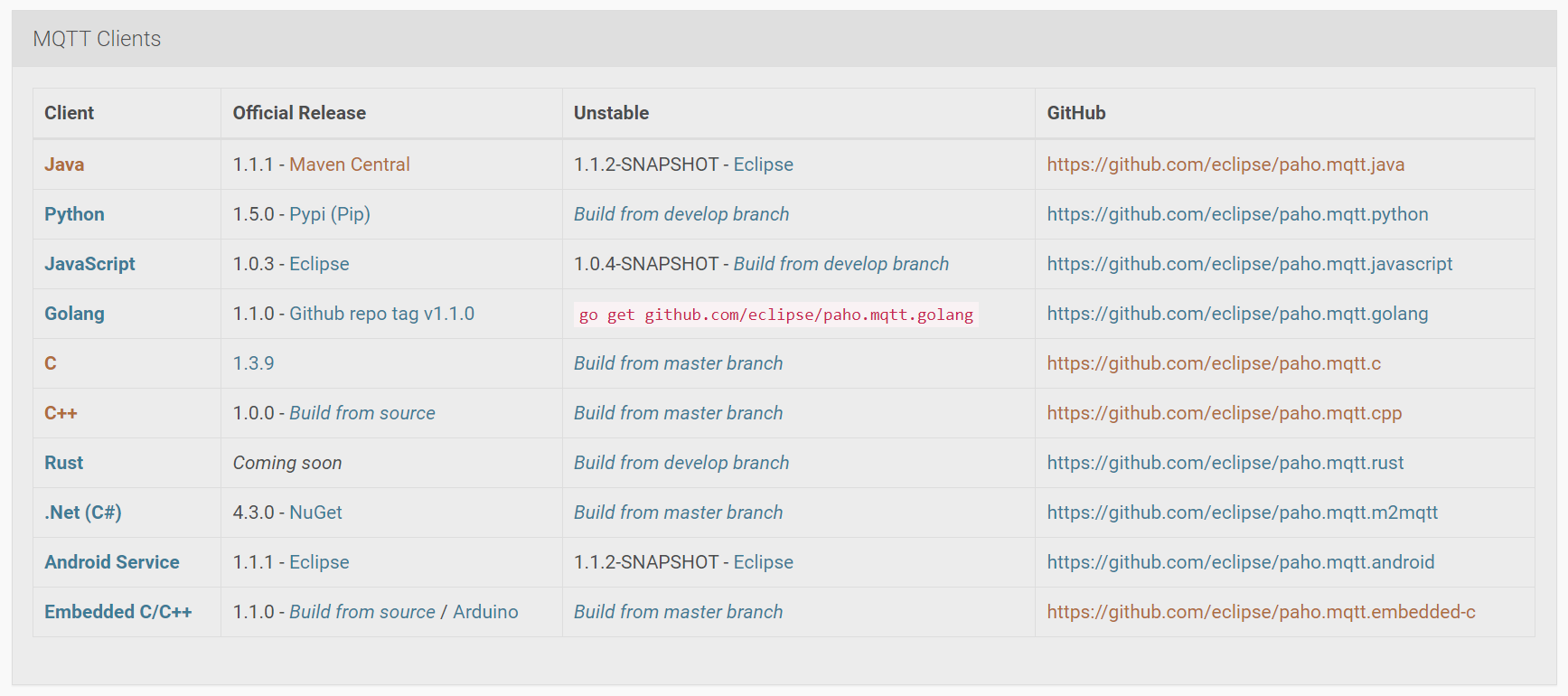

https://eclipse.dev/paho/index.php?page=downloads.php
https://eclipse.dev/paho/index.php?page=clients/java/index.php

https://github.com/eclipse/paho.mqtt.java

1.2.Getting Started

Dependency definition for MQTTv3 client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

<project ...>
<repositories>
    <repository>
        <id>Eclipse Paho Repo</id>
        <url>%REPOURL%</url>
    </repository>
</repositories>
...
<dependencies>
    <dependency>
        <groupId>org.eclipse.paho</groupId>
        <artifactId>org.eclipse.paho.client.mqttv3</artifactId>
        <version>%VERSION%</version>
    </dependency>
</dependencies>
</project>

Dependency definition for MQTTv5 client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

<project ...>
<repositories>
    <repository>
        <id>Eclipse Paho Repo</id>
        <url>%REPOURL%</url>
    </repository>
</repositories>
...
<dependencies>
    <dependency>
        <groupId>org.eclipse.paho</groupId>
        <artifactId>org.eclipse.paho.mqttv5.client</artifactId>
        <version>%VERSION%</version>
    </dependency>
</dependencies>
</project>

The included code below is a very basic sample that connects to a server and publishes a message using the MQTTv3 synchronous API. More extensive samples demonstrating the use of the MQTTv3 and MQTTv5 Asynchronous API can be found in the org.eclipse.paho.sample directory of the source.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

import org.eclipse.paho.client.mqttv3.MqttClient;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

public class MqttPublishSample {

    public static void main(String[] args) {

        String topic        = "MQTT Examples";
        String content      = "Message from MqttPublishSample";
        int qos             = 2;
        String broker       = "tcp://iot.eclipse.org:1883";
        String clientId     = "JavaSample";
        MemoryPersistence persistence = new MemoryPersistence();

        try {
            MqttClient sampleClient = new MqttClient(broker, clientId, persistence);
            MqttConnectOptions connOpts = new MqttConnectOptions();
            connOpts.setCleanSession(true);
            System.out.println("Connecting to broker: "+broker);
            sampleClient.connect(connOpts);
            System.out.println("Connected");
            System.out.println("Publishing message: "+content);
            MqttMessage message = new MqttMessage(content.getBytes());
            message.setQos(qos);
            sampleClient.publish(topic, message);
            System.out.println("Message published");
            sampleClient.disconnect();
            System.out.println("Disconnected");
            System.exit(0);
        } catch(MqttException me) {
            System.out.println("reason "+me.getReasonCode());
            System.out.println("msg "+me.getMessage());
            System.out.println("loc "+me.getLocalizedMessage());
            System.out.println("cause "+me.getCause());
            System.out.println("excep "+me);
            me.printStackTrace();
        }
    }
}

1.3.黑马封装

1
2
3

Java自学教程Java物联网开发“尚方宝剑”之EMQ_黑马程序员
https://www.bilibili.com/video/BV1o5411E7V1?p=34&vd_source=1a41e015388b00909f69083f9831969b

二、MQTT客户端

1.客户端程序

1.pom.xml

1
2
3
4
5

        <dependency>
            <groupId>org.eclipse.paho</groupId>
            <artifactId>org.eclipse.paho.client.mqttv3</artifactId>
            <version>1.2.5</version>
        </dependency>

2.application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

server:
  port: 8999
spring:
  application:
    name: mqtt-client

mqtt:
  # MQTT地址
  broker-url: tcp://192.168.202.188:1883
  # 客户端ID，随机定义
  client-id: emq-client-1111
  # 设备访问令牌
  username: 12Wt6lPaEplx5qKWg9qZ
  # 密码
  password:

3.工具类程序源码

EmqClient

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129

package com.iiotos.mqtt;
import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;

/**
 * Created by 传智播客*黑马程序员.
 */
@Component
public class EmqClient {

    private static final Logger log = LoggerFactory.getLogger(EmqClient.class);

    private IMqttClient mqttClient;

    @Autowired
    private MqttProperties mqttProperties;

    @Autowired
    private MqttCallback mqttCallback;

    @PostConstruct
    public void init(){
        MqttClientPersistence mempersitence = new MemoryPersistence();
        try {
            mqttClient = new MqttClient(mqttProperties.getBrokerUrl(),mqttProperties.getClientId(),mempersitence);
        } catch (MqttException e) {
            log.error("初始化客户端mqttClient对象失败,errormsg={},brokerUrl={},clientId={}",e.getMessage(),mqttProperties.getBrokerUrl(),mqttProperties.getClientId());
        }

    }

    /**
     * 连接broker
     * @param username
     * @param password
     */
    public void connect(String username,String password){
        MqttConnectOptions options = new MqttConnectOptions();
        options.setAutomaticReconnect(true);
        options.setUserName(username);
        options.setPassword(password.toCharArray());
        options.setCleanSession(true);

        mqttClient.setCallback(mqttCallback);

        try {
            mqttClient.connect(options);
        } catch (MqttException e) {
            log.error("mqtt客户端连接服务端失败,失败原因{}",e.getMessage());
        }
    }

    /**
     * 断开连接
     */
    @PreDestroy
    public void disConnect(){
        try {
            mqttClient.disconnect();
        } catch (MqttException e) {
            log.error("断开连接产生异常,异常信息{}",e.getMessage());
        }
    }

    /**
     * 重连
     */
    public void reConnect(){
        try {
            mqttClient.reconnect();
        } catch (MqttException e) {
            log.error("重连失败,失败原因{}",e.getMessage());
        }
    }

    /**
     * 发布消息
     * @param topic
     * @param msg
     * @param qos
     * @param retain
     */
    public void publish(String topic, String msg, QosEnum qos, boolean retain){

        MqttMessage mqttMessage = new MqttMessage();
        mqttMessage.setPayload(msg.getBytes());
        mqttMessage.setQos(qos.value());
        mqttMessage.setRetained(retain);
        try {
            mqttClient.publish(topic,mqttMessage);
        } catch (MqttException e) {
            log.error("发布消息失败,errormsg={},topic={},msg={},qos={},retain={}",e.getMessage(),topic,msg,qos.value(),retain);
        }

    }

    /**
     * 订阅
     * @param topicFilter
     * @param qos
     */
    public void subscribe(String topicFilter,QosEnum qos){
        try {
            mqttClient.subscribe(topicFilter,qos.value());
        } catch (MqttException e) {
            log.error("订阅主题失败,errormsg={},topicFilter={},qos={}",e.getMessage(),topicFilter,qos.value());
        }

    }

    /**
     * 取消订阅
     * @param topicFilter
     */
    public void unSubscribe(String topicFilter){
        try {
            mqttClient.unsubscribe(topicFilter);
        } catch (MqttException e) {
            log.error("取消订阅失败,errormsg={},topicfiler={}",e.getMessage(),topicFilter);
        }
    }

}

MessageCallback

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

package com.iiotos.mqtt;

import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.MqttCallback;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

/**
 * Created by 传智播客*黑马程序员.
 */
@Component
public class MessageCallback implements MqttCallback {

    private static final Logger log = LoggerFactory.getLogger(MessageCallback.class);

    /**
     * 丢失了对服务端的连接后触发的回调
     * @param cause
     */
    @Override
    public void connectionLost(Throwable cause) {
        // 资源的清理  重连
        log.info("丢失了对服务端的连接");
    }

    /**
     * 应用收到消息后触发的回调
     * @param topic
     * @param message
     * @throws Exception
     */
    @Override
    public void messageArrived(String topic, MqttMessage message) throws Exception {
        log.info("订阅者订阅到了消息,topic={},messageid={},qos={},payload={}",
                topic,
                message.getId(),
                message.getQos(),
                new String(message.getPayload()));
    }

    /**
     * 消息发布者消息发布完成产生的回调
     * @param token
     */
    @Override
    public void deliveryComplete(IMqttDeliveryToken token) {
        int messageId = token.getMessageId();
        String[] topics = token.getTopics();
        log.info("消息发布完成,messageid={},topics={}",messageId,topics);
    }
}

MqttProperties

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

package com.iiotos.mqtt;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

/**
 * Created by 传智播客*黑马程序员.
 */
@Configuration
@ConfigurationProperties(prefix = "mqtt")
public class MqttProperties {

    private String brokerUrl;

    private String clientId;

    private String username;

    private String password;

    public String getBrokerUrl() {
        return brokerUrl;
    }

    public void setBrokerUrl(String brokerUrl) {
        this.brokerUrl = brokerUrl;
    }

    public String getClientId() {
        return clientId;
    }

    public void setClientId(String clientId) {
        this.clientId = clientId;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    @Override
    public String toString() {
        return "MqttProperties{" +
                "brokerUrl='" + brokerUrl + '\'' +
                ", clientId='" + clientId + '\'' +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                '}';
    }
}

QosEnum

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

package com.iiotos.mqtt;

/**
 * Created by 传智播客*黑马程序员.
 */
public enum QosEnum {
    QoS0(0),QoS1(1),QoS2(2);


    private final int value;

    QosEnum(int value) {
        this.value = value;
    }

    public int value(){
        return this.value;
    }
}

4.测试代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

@EnableScheduling
@SpringBootApplication
public class MqttClientApplication {

    public static void main(String[] args) {
        SpringApplication.run(MqttClientApplication.class, args);
    }

    @Autowired
    private EmqClient emqClient;

    @Autowired
    private MqttProperties properties;

    @PostConstruct
    public void init(){
        //连接服务端
        emqClient.connect(properties.getUsername(),properties.getPassword());
        //订阅一个主题
        emqClient.subscribe("testtopic/#", QosEnum.QoS2);
        //开启一个新的线程 每隔5秒去向 testtopic/123
        new Thread(()->{
            while (true){
                String content = "{\n" +
                        "\t\"mqtt-1\": 1003,\n" +
                        "\t\"mqtt-2\": \"java data3\"\n" +
                        "}";

                emqClient.publish("v1/devices/me/telemetry",content,
                        QosEnum.QoS1,false);
                try {
                    TimeUnit.SECONDS.sleep(5);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }

            }
        }).start();
    }
}

2.客户端测试

参考工程：mqtt-client

1.案例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

@Component
public class CaseTest {

    @Autowired
    private EmqClient emqClient;

    @Autowired
    private MqttProperties properties;

    @PostConstruct
    public void init(){
        //连接服务端
        emqClient.connect(properties.getUsername(),properties.getPassword());
        //订阅一个主题
        emqClient.subscribe("testtopic/#", QosEnum.QoS2);
    }

    @Scheduled(fixedRate = 2000)
    public void publish(){
//        String content = "{\n" +
//                "\t\"mqtt-100\": 1000,\n" +
//                "\t\"mqtt-200\": \"java data\"\n" +
//                "}";

        String content = "{\n" +
                "\t\"mqtt-10\": 10011,\n" +
                "\t\"mqtt-20\": \"java data11\"\n" +
                "}";

        emqClient.publish("v1/devices/me/telemetry",content,
                QosEnum.QoS1,false);
    }
}

2.案例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

import com.iiotos.mqtt.EmqClient;
import com.iiotos.mqtt.MqttProperties;
import com.iiotos.mqtt.QosEnum;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import java.util.concurrent.TimeUnit;

@Component
public class BasicTest {

    @Autowired
    private EmqClient emqClient;

    @Autowired
    private MqttProperties properties;

    @PostConstruct
    public void init(){
        //连接服务端
        emqClient.connect(properties.getUsername(),properties.getPassword());
        //订阅一个主题
        emqClient.subscribe("testtopic/#", QosEnum.QoS2);
        //开启一个新的线程 每隔5秒去向 testtopic/123
        new Thread(()->{
            while (true){
                String content = "{\n" +
                        "\t\"mqtt-10\": 10011,\n" +
                        "\t\"mqtt-20\": \"java data11\"\n" +
                        "}";

                emqClient.publish("v1/devices/me/telemetry",content,
                        QosEnum.QoS1,false);
                try {
                    TimeUnit.SECONDS.sleep(5);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }

            }
        }).start();
    }
}
